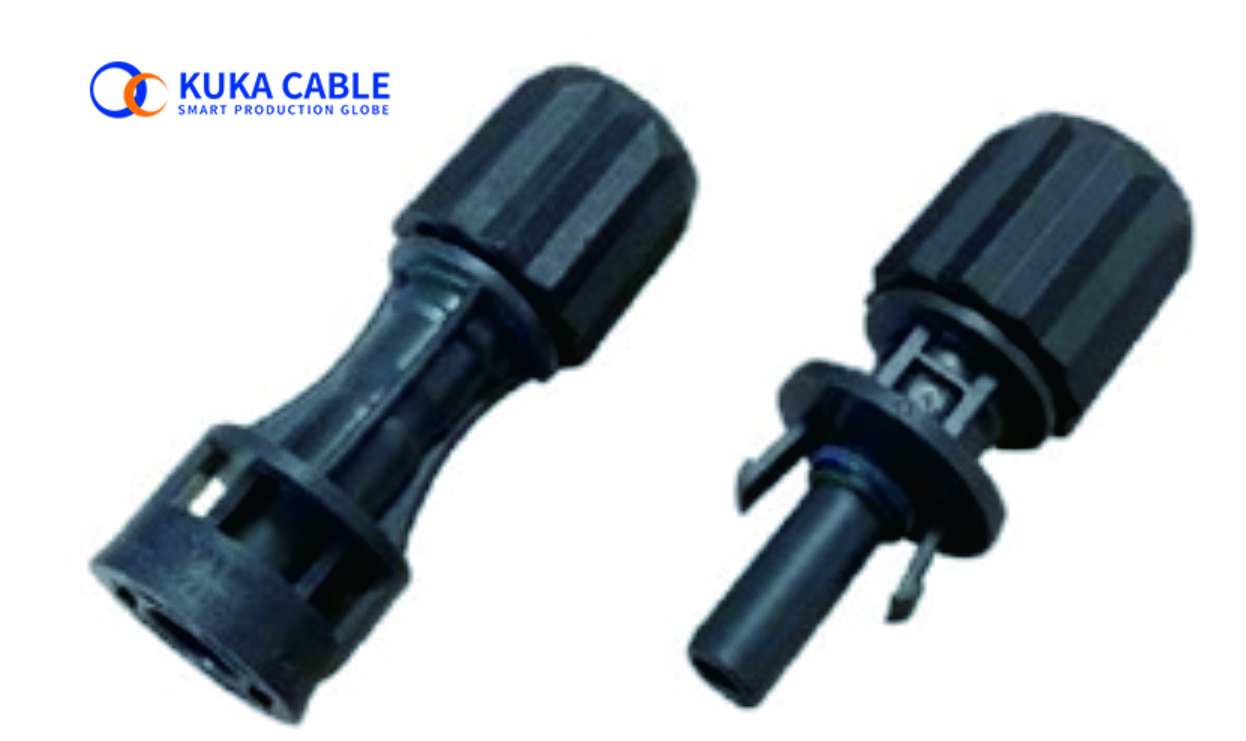

MC4 Connecter 1500V

Advantages
- TUV Certified to IEC 62852
- Accommodate PV cables with vary daimeters
- High current carring capacity
- Efficient snap in locking system for easy and safe install
- Reliable in hatsh conditions
- IP67 water proof and dust proof
- Low transition resistance

Technical Data
- Rated Voltage : 1500V DC
- Rated Current (per IEC 26852, 80ºC) : 17A (1,5mm), 22.5A (2,5mm), 30A (4,0mm, 6.0m)
- Test Voltage : 6k(50Hz, 1min)
- Contact maerial : Tin-plated Copper Alloy
- Contact resistance : ≤0.3m
- Insulation material : PPO
- Locking system : Snap-in
- Operating  temp. Range : -40ºC to 90ºC
- Overvoltage category/Polution degree : CAT III/2
- Protection degree : IP67
- Flame Class : UL-94-V0
- Tupe of termination : Crimping
- Contact System : Lathed
- Cable OD range : 5.3mm – 765mm
